Receipt email

Build brief for a coding agent. Rebuild this piece in the reader’s stack. If they haven’t said which stack, ask once, then default to semantic HTML + CSS + a little vanilla JS. Match the numbers below; don’t “improve” them.

What it is

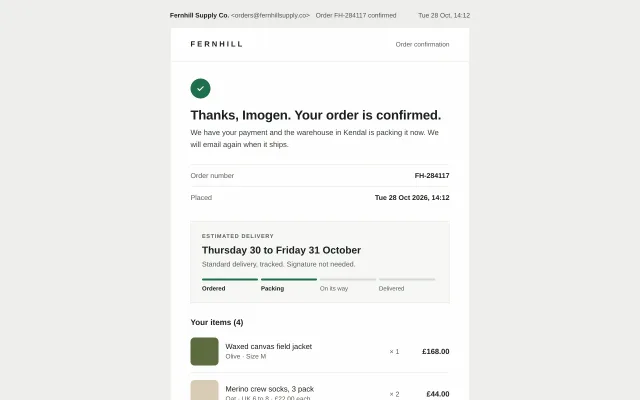

The order confirmation an invented outdoor-goods shop, Fernhill Supply Co., sends seconds after checkout. It is deliberately plain: Helvetica and Arial only (no web font at all, because receipts must render identically in every client), one forest-green accent for “this is done” signals, hairline rules, and right-aligned tabular prices. It answers the five questions a customer has, in the order they have them: did it work, what is my order number, when will it arrive, what did I pay for, and how do I get help. The detail worth copying is the delivery card: a date range in 20px bold with four progress steps, two already green, so the receipt doubles as the first tracking update.

Reference behaviour

1. Viewer strip above the email (not part of it): “Fernhill Supply Co. orders@fernhillsupply.co · Order FH-284117 confirmed · Tue 28 Oct, 14:12”.
2. Hidden preheader: “Your order FH-284117 is confirmed. Arriving Thu 30 Oct to Fri 31 Oct. Total £205.20.”
3. Header: letterspaced “FERNHILL” wordmark left, “Order confirmation” right, hairline under.
4. Confirmation: a 40px green disc with a white check, “Thanks, Imogen. Your order is confirmed.” (26px bold) and one sentence on what happens next.
5. Two key-value rows: Order number FH-284117, Placed Tue 28 Oct 2026, 14:12 (values bold, right-aligned).
6. Delivery card (#f6f7f5, 1px border, 10px radius): “Estimated delivery”, “Thursday 30 to Friday 31 October”, service line, and four 4px step bars: Ordered and Packing green and bold, On its way and Delivered grey.
7. “Your items (4)”: three rows, each a 56px colour swatch, name, variant line, quantity ”× n”, and line total; the socks row shows the unit price in the variant line.
8. Totals: Subtotal £228.00, Discount (AUTUMN10) −£22.80 in green, Delivery Free, a 2px rule, Total paid £205.20 at 18px bold, Includes VAT £34.20.
9. Two columns: Paid with (card glyph, “Debit card ending 4421”, charge time) and Delivering to (name and three address lines).
10. One button, “View order and tracking”. Then the help block: what can still be changed, until when, the returns window, a “Get help with this order” link and a promise that a person answers replies.
11. Footer: why this email is sent regardless of marketing preferences, legal name, address and VAT number. No unsubscribe link (it is a service email).
12. Below 640px: full-width column, 20px gutters, 44px swatches, the two info columns stack, the button goes full width. Dark mode swaps to #181a19 paper with #7fc8a0 for the green text and step bars.

Structure

1280 × 800, page scrolls
             ┌ viewer strip ─────────────────────────────────────────┐
             ┌──────────────────────── 600 ──────────────────────────┐ 1px #E3E5E1 border
             │ F E R N H I L L                    Order confirmation │ 26/40
             ├───────────────────────────────────────────────────────┤
             │ (check disc)                                          │ 34/40/6
             │ Thanks, Imogen. Your order is confirmed. (26 bold)    │
             │ next-step sentence                                    │
             │ Order number ─────────────────────────── FH-284117    │ key/value rows,
             │ Placed ───────────────────── Tue 28 Oct 2026, 14:12   │ 1px tops
             │ ┌ ESTIMATED DELIVERY ─────────────────────────────┐   │ card 20/22 pad
             │ │ Thursday 30 to Friday 31 October (20 bold)      │   │
             │ │ ▬▬▬▬ ▬▬▬▬ ──── ────  Ordered Packing On… Deliv… │   │ 4 steps, 25% each
             │ └─────────────────────────────────────────────────┘   │
             │ Your items (4)                                        │
             │ [■56] Name / variant                ×1     £168.00    │ rows 14 pad
             │ Subtotal ……………………………………………………………… £228.00             │
             │ ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ │ 2px ink
             │ Total paid                                  £205.20   │
             │ Paid with            │ Delivering to                  │ 50 / 50
             │ [ View order and tracking ]                           │
             │ help copy + link                                      │
             │ ░ footer: service-email note · legal · VAT ░          │
             └───────────────────────────────────────────────────────┘

• Outer presentation table, centred cell, hidden preheader, .wrap table (width="600", 1px border).
• One <tr><td> per band: .hd, .ok, .meta, .ship (card table with an inner .steps table of four cells), .items (<h2> + table of .it rows: .sw, .nm, .q, .p), .tot, .pay (two .col cells), .cta, .help, .foot.
• Swatches stand in for product photos; in production use 112 × 112 PNGs at width="56" with the product name as alt.
• The check disc: in the demo an inline SVG; in production a 40 × 40 PNG (Gmail drops inline SVG), or a check-mark character in a green cell.

Tokens

:root {
  /* light */
  --ground: #eeeeeb;   /* behind the email */
  --paper: #fefefd;    /* email body */
  --ink: #1c1f1d;      /* headings, values, prices, 2px total rule */
  --text: #3d423f;     /* sentences */
  --muted: #5b615d;    /* labels, variants, quantities */
  --line: #e3e5e1;     /* hairlines and outer border */
  --panel: #f6f7f5;    /* delivery card, footer */
  --step-off: #d5d9d4;
  --ok: #1f6f4a;       /* check disc, done steps, discount, button, help link */
  --on-ok: #ffffff;

  /* dark */
  --d-ground: #0f1110;  --d-paper: #181a19;  --d-ink: #eef0ed;  --d-text: #cfd3d0;  --d-muted: #a3aaa5;
  --d-line: #2a2e2c;  --d-panel: #1f2220;  --d-step-off: #3a3f3c;  --d-ok-text: #7fc8a0;  --d-foot: #141615;

  /* type: web-safe only */
  --sans: Helvetica, Arial, sans-serif;
  --fs-h1: 26px;  --fs-eta: 20px;  --fs-total: 18px;  --fs-h2: 16px;  --fs-body: 14px;  --fs-item: 15px;
  --fs-small: 13px;  --fs-label: 11px;  --fs-foot: 12px;

  /* layout */
  --col: 600px;  --gutter: 40px;  --gutter-m: 20px;
  --r-card: 10px;  --r-btn: 8px;  --r-swatch: 8px;
  --swatch: 56px;  --swatch-m: 44px;  --disc: 40px;  --step-h: 4px;
}

Typography

Role	Family	Size	Weight	Line-height	Tracking	Case
Wordmark	Helvetica/Arial	15px	700	1	+0.28em	UPPERCASE
Confirmation	Helvetica/Arial	26px	700	1.2	−0.01em	sentence
Delivery range	Helvetica/Arial	20px	700	1.25	0	sentence
Section heading	Helvetica/Arial	16px	700	1.3	0	sentence
Item name	Helvetica/Arial	15px	400	1.4	0	sentence
Line total	Helvetica/Arial	15px	700	1	0	tabular
Total paid	Helvetica/Arial	18px	700	1.3	0	tabular
Body, key/value	Helvetica/Arial	14px	400 / 700 values	1.4–1.6	0	sentence
Variant, VAT	Helvetica/Arial	13px	400	1.4	0	sentence
Card label	Helvetica/Arial	11px	700	1	+0.12em	UPPERCASE
Footer	Helvetica/Arial	12px	400	1.6	0	sentence

All numbers use font-variant-numeric: tabular-nums and white-space: nowrap, so £168.00 and £16.00 align on the right edge.

Motion

None. A receipt should never move. motion: none.

States

• Step bars: done = --ok bar and bold ink label; pending = --step-off bar and muted label. The shipping email reuses this block with three done.
• Discount row: label and amount in --ok, amount with a real minus sign (−).
• Free delivery: the word “Free”, never “£0.00”.
• Button: --ok fill, white 15px/700, 8px radius, 15px 24px padding; full width below 640.
• Help link: --ok, bold, underlined by default.
• Focus-visible (web view): 2px --ok outline, 3px offset.
• Dark mode: paper, rules, card and footer swap; green text and done bars use #7fc8a0; the button keeps #1f6f4a with white text.

Accessibility

• Layout tables carry role="presentation"; headings are <h1> (confirmation) and <h2> (Your items, Paid with, Delivering to).
• Each swatch has role="img" and the colour name as its label (product image alt in production).
• The check disc is decorative; the headline says “confirmed” in words.
• Prices are text, never images; the total sits on its own row with a 2px rule above it so it can be found by sight and by reading order.
• Contrast: muted on paper 6.3:1, green on paper 6.1:1, white on green 6.1:1, muted on panel 5.9:1, strip text on ground 6.6:1. Dark: muted 7.4:1, green text 8.9:1.
• The help block says who answers and when (“a person answers, Monday to Saturday, 8am to 8pm”).

Responsive rules

• ≥ 1280, 1024, 768: 600px column with a 1px border, centred.
• < 640: column 100% with no side borders, gutters 20px, swatches 44px, quantity column 36px, price column 72px, the two info columns become blocks with 18px between, button display:block.
• 360: item names wrap to two lines; prices never wrap (nowrap).
• Clients without media queries keep the 600px layout.

Acceptance checklist

Always

• No web fonts: every rule uses Helvetica, Arial, sans-serif.
• Order: confirmation, order number and date, delivery estimate, items, totals, payment and address, one button, help, footer.
• The delivery estimate is a date range in words, with four steps and the done ones in the accent.
• Line items show swatch or image, name, variant, quantity and line total; prices are right-aligned tabular numbers.
• Totals show subtotal, discount with code, delivery, a ruled total and the VAT included.
• Payment shows only the last four digits; no card brand logo.
• Exactly one button.
• Footer explains it is a service email and gives legal name, address and VAT number; no unsubscribe.
• Below 640px the info columns stack and the button is full width.
• Dark mode keeps every text at 4.5:1 or more.

This demo

• Order FH-284117, placed Tue 28 Oct 2026, 14:12, for Imogen Hart.
• Items: Waxed canvas field jacket × 1 £168.00; Merino crew socks, 3 pack × 2 £44.00; Enamel camp mug × 1 £16.00.
• Subtotal £228.00, AUTUMN10 −£22.80, delivery Free, total £205.20, VAT £34.20.
• Delivery Thursday 30 to Friday 31 October; card ending 4421.

Implementation notes

Right-aligned money that never wraps. Put prices in their own fixed-width cell and lock the numerals:

<tr class="it">
  <td class="sw" width="56"><img src="jacket.png" width="56" height="56" alt="Waxed canvas field jacket, olive"></td>
  <td class="nm" style="padding-left:14px">Waxed canvas field jacket<span style="display:block;font-size:13px;color:#5b615d">Olive · Size M</span></td>
  <td class="q" width="52" align="center">× 1</td>
  <td class="p" width="84" align="right" style="font-weight:700;font-variant-numeric:tabular-nums;white-space:nowrap">£168.00</td>
</tr>

Progress steps without images. Four equal cells, each with a 4px bar <div> above its label; colour is the only change between done and pending, and the done label is also bold so the state is not colour alone:

.steps td { width:25%; padding-right:6px; font:12px/1.35 Helvetica,Arial,sans-serif; color:#5b615d; }
.steps td div { height:4px; border-radius:2px; background:#d5d9d4; margin-bottom:8px; }
.steps td.done { color:#1c1f1d; font-weight:700; }
.steps td.done div { background:#1f6f4a; }

Margins collapse out of an empty-looking disc. A block SVG with a top margin inside a 40px disc pushes the disc down instead of the icon; use padding-top:11px; height:29px on the disc.

Common mistakes: a hero banner or promotions above the order number; an unsubscribe link on a service email (it confuses people into thinking they can stop receipts); totals left-aligned or in proportional figures; “£0.00” delivery; a noreply address on a receipt that tells people to reply.
