Roadmap swimlanes

Build brief for a coding agent. Rebuild this piece in the reader’s stack. If they haven’t said which stack, ask once, then default to semantic HTML + CSS + a little vanilla JS. Match the numbers below; don’t “improve” them.

What it is

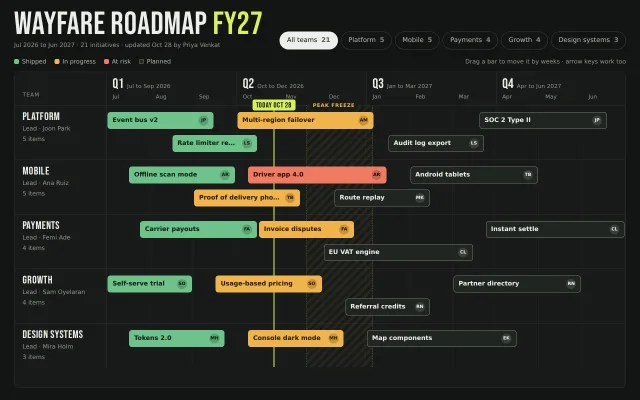

A one-screen product roadmap for an invented logistics company (“Wayfare roadmap FY27”). Twelve months run left to right in four quarters; five team swimlanes run top to bottom, each with one or two rows of initiative bars. Bars are filled by status (shipped green, in progress amber, at risk coral, planned as an outlined dark bar), a chartreuse today line cuts through every lane, and a hatched “peak freeze” band marks weeks nobody should ship. Every bar can be dragged along time and snaps to whole weeks, with a date bubble that reads the new range as you drag. The detail worth copying is that every position is a percentage of the track, so the same data lays out at 1280 and inside a 1000px horizontal scroller on a phone.

Reference behaviour

1. Initial state: “All teams 21” filter pressed; five lanes visible (Platform, Mobile, Payments, Growth, Design systems); today line at Oct 28 (month 3.87 of 12); freeze band from Nov 20 to Jan 6.
2. Hover a bar: it lifts 1px and gains a soft drop shadow (140ms).
3. Pointer-down on a bar: it gains a 2px light ring and a deep shadow, cursor becomes grabbing, and a dark-on-light bubble appears centred above it reading the range (“Feb 22 to Apr 30”).
4. Drag horizontally: the bar follows the pointer, snapping to 0.25-month steps (one week); it cannot start before Jul 1 or end after Jun 30. The bubble text and position update on every snap.
5. Pointer-up: ring, shadow and bubble go away; the bar keeps its new position; its aria-label now states the new range.
6. Keyboard: focus a bar with Tab and press ← or → to move it one week; the bubble appears while it moves and disappears on blur.
7. Click a team chip: only that lane stays visible, and it fades in from 6px above (280ms). The chip turns solid light; “All teams” restores every lane.
8. Below 760px: the timeline sits in a horizontal scroller (min-width 1000px), the team column sticks to the left, and the scroller opens at October so the today line is in view.

Structure

1280 × 800
┌───────────────────────────────────────────────────────────────────────────┐
│ WAYFARE ROADMAP FY27 (Bebas 64)          [All teams 21][Platform 5]…[Design 3]│
│ Jul 2026 to Jun 2027 · 21 initiatives · updated…                            │
│ ■ Shipped ■ In progress ■ At risk □ Planned          Drag a bar… (hint)     │
│ ┌────────────┬──────────────┬──────────────┬──────────────┬──────────────┐  │
│ │ TEAM       │ Q1 Jul to Sep│ Q2 Oct to Dec│ Q3 Jan to Mar│ Q4 Apr to Jun│  │ head 66
│ │            │ Jul Aug Sep  │ Oct Nov Dec  │ …            │              │  │
│ ├────────────┼──────────[TODAY OCT 28]─[PEAK FREEZE]─────────────────────┤  │
│ │ PLATFORM   │ [Event bus v2]  [Multi-region failover]        [SOC 2…]    │  │ lane: 2 rows × 46
│ │ Lead · …   │       [Rate limiter]            [Audit log export]         │  │
│ ├────────────┼────────────────┃──////────────────────────────────────────┤  │
│ │ MOBILE …   │ …              ┃  ////                                     │  │
│ └────────────┴────────────────┸──────────────────────────────────────────┘  │
│   184px          track = 12 equal months, bars at s/12 × 100%                │
└───────────────────────────────────────────────────────────────────────────┘

• <header>: <h1> (Bebas, with “FY27” in the today colour), a .sub meta line, and .filters (role="group" aria-label="Filter by team") of <button aria-pressed> chips with a count.
• .legend (decorative, aria-hidden) with four swatches and the drag hint.
• .scroll (overflow:auto, 1px border, 10px radius) holds .grid (min-width:1000px; position:relative).
• .head sticky top: .corner + .qs (4 quarter columns, each 3 month labels). The today pill and freeze tag sit on the head’s bottom edge.
• One <section class="lane" aria-label="Platform"> per team: .who (sticky left: Bebas team name, lead, item count) + .track with .row children, each holding absolutely positioned <button class="bar">.
• .overlay (absolute, from left: var(--lane-w) to the right edge, below the bars): .freeze hatched band and the 2px .today line.
• .tip (role="status") is the drag bubble.

Data shape, one array per team: [title, startMonth, endMonth, status, ownerInitials], months as floats from 0 (Jul 1) to 12 (Jun 30).

Tokens

:root {
  /* surfaces */
  --bg: #121413;          /* page */
  --panel: #181b19;       /* roadmap panel, sticky columns */
  --panel-2: #202421;     /* planned bar fill */
  --line: #2a2e2b;        /* hairlines, month gridlines */
  --line-2: #3a3f3b;      /* chip border */
  /* text */
  --ink: #ecefea;  --ink-2: #b4bbb3;  --ink-3: #8f978f;
  /* accent: time */
  --today: #d8f25a;  --today-ink: #121413;
  /* status */
  --shipped: #6fc28b;  --shipped-ink: #0d1f14;
  --progress: #f0b44c; --progress-ink: #2a1b00;
  --risk: #f07a63;     --risk-ink: #2a0e08;
  --planned: #6e766f;  /* 1px inset ring on planned bars */
  /* type */
  --display: "Bebas Neue", Impact, sans-serif;
  --ui: ui-sans-serif, system-ui, -apple-system, "Segoe UI", sans-serif;
  /* layout */
  --lane-w: 184px;   /* 120px below 760 */
  --row-h: 46px;
  --bar-h: 34px;
  --r: 6px;          /* bars */
  --r-panel: 10px;
  --chip-h: 36px;
  /* depth */
  --sh-drag: 0 14px 30px -10px rgba(0,0,0,.7), 0 0 0 2px var(--ink);
  --sh-hover: 0 6px 14px -6px rgba(0,0,0,.6);
  /* motion */
  --t-micro: 140ms;
  --t-layout: 280ms;
  --ease: cubic-bezier(.2, .7, .2, 1);
  --ease-out: cubic-bezier(.16, 1, .3, 1);
  --snap: .25;       /* months per snap step (one week) */
}

Typography

Role	Family	Size	Weight	Line-height	Tracking	Case
Page title	Bebas Neue	64px (48px < 760)	400	0.84	+0.01em	caps (font)
Quarter label	Bebas Neue	28px	400	1	+0.02em	caps
Team name	Bebas Neue	22px (18px < 760)	400	1	+0.03em	caps
Today pill	Bebas Neue	15px	400	1	+0.06em	caps
Bar label	system UI	12.5px	600	1	0	sentence
Owner initials	system UI	9px	700	20px	0	caps
Chip	system UI	13px	500 (count 600)	1	0	sentence
Meta, month, lead	system UI	11–12px	400–500	1.4	0 to +0.02em	sentence
Corner, freeze tag	system UI	10–11px	600	1	+0.08em	UPPERCASE

Motion

Element	Trigger	Property	From → To	Duration	Easing	Reduced motion
.bar	hover	transform, box-shadow	0 → −1px, none → --sh-hover	140ms	--ease	1ms
.bar.drag	pointer-down	transform, box-shadow	→ −2px, --sh-drag	0 (instant)	—	same
.bar position	drag / arrow keys	left	snaps per week	0	—	same
.tip	drag start / end	opacity	0 ↔ 1	140ms	--ease	1ms
.chip	hover, press	background, colour, border		140ms	--ease	1ms
.lane.in	becomes visible via filter	opacity, translateY	0, −6px → 1, 0	280ms	--ease-out	none

No looping animation anywhere; the today line is static.

States

• Bar status: Shipped fill --shipped / text --shipped-ink; In progress --progress / --progress-ink; At risk --risk / --risk-ink; Planned fill --panel-2, text --ink, 1px inset ring --planned.
• Bar hover: −1px, soft shadow. Dragging: −2px, 2px --ink ring and deep shadow, cursor: grabbing, z-index:6.
• Bar focus-visible: 2px --today outline, 2px offset.
• Chip pressed: fill --ink, text --bg, border --ink. Hover: border --ink-3, text --ink.
• Filtered: non-matching lanes get hidden; the today line and freeze band still span the visible lanes.
• Truncation: long titles ellipsise inside the bar; the owner disc never shrinks.

Accessibility

• Bars are <button>s with aria-label="Driver app 4.0, At risk, Oct 8 to Jan 16. Left and right arrows move by a week.", refreshed after every move.
• ← / → move a focused bar one week and call preventDefault so the scroller does not also scroll.
• The drag bubble is role="status" aria-live="polite" so keyboard moves are announced.
• Filter chips are a role="group" of toggle buttons with aria-pressed; only one is pressed.
• Lanes are <section aria-label> so screen readers can jump by region.
• Contrast: --ink-3 on --panel 5.8:1; bar text on fills 6.6–9.0:1; --today-ink on --today 14.8:1. Planned bar ring #6e766f on --panel 3.7:1 for the non-text edge.
• Hit targets: chips 36px tall; bars 34px tall and at least 140px wide in the data.

Responsive rules

• ≥ 1280: as specified; the 1000px grid fills the panel.
• 1024–1279: same; the track narrows, bars shrink proportionally, titles ellipsise.
• 760–1023: chips scroll horizontally on one line if they don’t fit; the grid keeps min-width:1000px and the panel scrolls sideways.
• < 760: 16px gutters, title 48px, --lane-w 120px, the drag hint is hidden, and on load scrollLeft is set so October is the first visible month. The team column stays sticky. The page itself never scrolls sideways at 390px; only .scroll and .filters do.

Acceptance checklist

Always

• Bars are positioned with left: s/12 × 100% and width: len/12 × 100% of the track, never with pixel math tied to one width.
• Dragging snaps to whole weeks and clamps to the year; the bar never leaves the track.
• A date bubble shows the live range while dragging and on arrow-key moves.
• ← / → move a focused bar by one week; aria-label updates with the new range.
• Four statuses are distinguishable by fill and by the legend, not by colour alone (planned is outlined).
• The today line and freeze band sit under the bars, so bar text is never crossed.
• Filter chips are single-select toggles; the shown lane fades in over 280ms.
• Header row and team column stay sticky inside the scroller.
• At 390 wide nothing on the page scrolls sideways except the roadmap panel and chip row.

This demo

• Title “WAYFARE ROADMAP FY27”, meta “Jul 2026 to Jun 2027 · 21 initiatives · updated Oct 28 by Priya Venkat”.
• Chips read All teams 21, Platform 5, Mobile 5, Payments 4, Growth 4, Design systems 3.
• Today pill “TODAY OCT 28” at 3.87/12 of the track; freeze band 4.63 to 6.16.
• “Driver app 4.0” is the only At risk bar.

Implementation notes

Snap and clamp in months, then render as percentages. Convert the pointer delta with the track’s width per month at drag start:

lanes.addEventListener('pointerdown', (e) => {
  const b = e.target.closest('.bar'); if (!b) return;
  drag = { b, x: e.clientX, s: +b.dataset.s, per: b.closest('.track').getBoundingClientRect().width / 12 };
  b.setPointerCapture(e.pointerId);
});
const move = (b, s) => {
  b.dataset.s = Math.max(0, Math.min(12 - +b.dataset.len, Math.round(s / .25) * .25));
  b.style.left = `calc(${b.dataset.s / 12 * 100}% + 2px)`;
};

Month float to a date label. Keep a days-per-month table for the fiscal year so the bubble reads real dates:

const MON = ['Jul','Aug','Sep','Oct','Nov','Dec','Jan','Feb','Mar','Apr','May','Jun'];
const DAYS = [31,31,30,31,30,31,31,28,31,30,31,30];
const fmt = (m) => { const i = Math.floor(m); return MON[i] + ' ' + (Math.floor((m - i) * DAYS[i]) + 1); };

Layering. The overlay (today line, freeze band) must sit under the rows and under the sticky team column, and the today pill belongs to the sticky head, or it disappears behind it when the panel scrolls:

.overlay { position:absolute; inset:0 0 0 var(--lane-w); z-index:1; pointer-events:none; }
.row { position:relative; z-index:2; }
.who { position:sticky; left:0; z-index:3; background:var(--panel); }
.head { position:sticky; top:0; z-index:5; }

Common mistakes: drawing the today line above the bars (it slices through labels); forgetting touch-action:none on bars, so touch drags scroll the panel instead; snapping in pixels, which drifts when the window resizes.
