Ask with a source and a model

Build brief for a coding agent. Rebuild this piece in the reader’s stack. If they haven’t said which stack, ask once, then default to semantic HTML + CSS + a little vanilla JS. Match the numbers below; don’t “improve” them. When a kit is locked, Send is --primary and a source chip uses --primary-soft. This demo uses the numbers below.

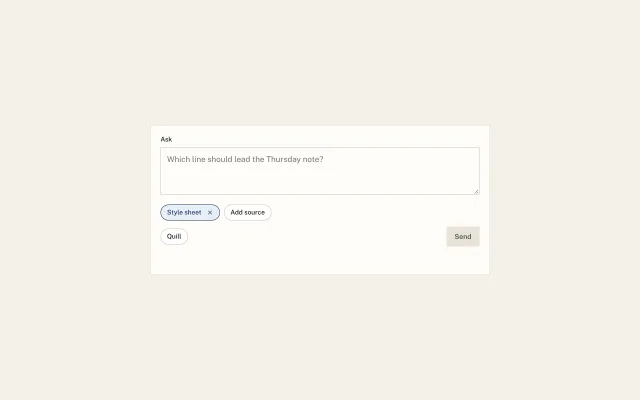

What it is

The ask box on Quire, a Thursday note desk. It is not the tone box. That box is prompt-composer, and it has Plain, Short, and Formal. This one attaches a source and names the model. Style sheet starts on the box. Add source opens House rules and Night book. The model button reads Quill, and one click switches it to Quill small. Send stays off until the field has text that is not only space. Sending does not invent an answer. It prints the model, the attached names, and the trimmed count. A sourced paragraph that is already written is cited-answer. The whole thread is ai-chat-workspace.

Reference behaviour

1. The field is empty. Placeholder: “Which line should lead the Thursday note?”. Send is disabled. The status line is empty.
2. Style sheet is attached, with a remove control named “Remove Style sheet”.
3. Add source is collapsed. Activating it opens a list: House rules, Night book.
4. Choosing a row removes it from the list, inserts a chip before Add source, and closes the list.
5. Removing a chip returns that name to the list and shows Add source if it was hidden.
6. Add source hides when the list is empty. It returns when a chip is removed.
7. The model button starts as Quill, aria-pressed="false". One click sets Quill small and aria-pressed="true". The next click returns to Quill.
8. Any non-space character enables Send. Clearing the field disables Send and clears the status.
9. Submit writes Asked Quill · Style sheet · 12 characters, using the current model name, the attached names in order separated by commas, and the trimmed length. No sources writes no source in that middle place.
10. A second edit, a model click, an add, or a remove clears the status until the next submit.
11. The field stops at 240 characters.

Structure

form, 680px, padding 20px
  label Ask
  textarea, min-height 96px, maxlength 240
  div.sources
    span.src chips
    button.add "Add source" aria-expanded aria-controls=menu
    div.menu role=listbox, hidden until open
  div.row
    button.model
    button.send, margin-left auto, 40px
  p.out role=status, min-height 22px

• Source chips are not buttons. The remove control inside the chip is the button.
• Add source and the model are type="button" so they do not submit.
• Send is type="submit".
• The menu is position: absolute under Add source, min-width 180px. It does not push the model row.

Tokens

:root {
  --bg: #f4f1ea;
  --surface: #fffdf8;
  --ink: #1a1814;
  --ink-2: #5c564c;
  --line: #e3dcd0;
  --line-2: #cfc6b6;
  --ink-blue: #1e3a5f;
  --soft: #e7eef6;
  --serif: "Fraunces", Georgia, serif;
  --sans: "Public Sans", system-ui, sans-serif;
  --radius: 2px;
}

Chips, Add source, and the model button are pills (999px). The field, the menu, and Send use --radius.

Typography

Role	Family	Size	Weight	Line	Tracking
Label	Public Sans	13px	500	1	0
Field	Public Sans	16px	400	1.45	0
Chip, Add, model	Public Sans	13px	500	1	0
Menu row	Public Sans	14px	500	1	0
Send	Public Sans	14px	600	1	0
Status	Public Sans	14px	400	1.4	0

Fraunces is loaded for a locked editorial pairing that wants a serif question. This demo sets the label and the field in Public Sans. Do not set the field in the serif.

Motion

Thing	Trigger	From	To	Duration	Reduced motion
Menu	Add source	hidden	shown	none	instant
Status	submit	empty	one line	none	instant

No typewriter. The model name swaps in place.

States

• Send disabled: background #e7e2d8, text #5c564c. Enabled: background #1e3a5f, text #f4f1ea.
• Source chip: background #e7eef6, border and text #1e3a5f, height 32px.
• Model at rest: white, border #cfc6b6, label Quill.
• Model pressed: background #1a1814, text #f4f1ea, label Quill small.
• Menu row hover: background #e7eef6.
• Field focus: border #1e3a5f. The browser outline is suppressed on the field because the border is the indicator. Every button keeps a 2px #1e3a5f focus ring, offset 3px.
• Add source hidden: the hidden attribute, not visibility.

Accessibility

• The field has a real label, Ask. The placeholder is not the name.
• Add source has aria-expanded and aria-controls. The menu is role="listbox" named Sources. Each row is role="option".
• Remove buttons are named “Remove Style sheet”, “Remove House rules”, or “Remove Night book”. The icon is aria-hidden.
• The model button’s accessible name is its visible label, Quill or Quill small. aria-pressed matches Quill small.
• Status is role="status".
• Focus order: field, remove buttons left to right, Add source, menu rows when open, model, Send.
• Send is disabled, so it is not in the tab order until the field has text.
• Contrast: #1a1814 on #fffdf8, #f4f1ea on #1e3a5f, #1e3a5f on #e7eef6.
• Hit targets: Send is 40px. Chips and the model are 32px, which is the dense desk size. On a phone, make the model and Send 44px.

Responsive rules

• ≥1280: the form stays 680px, centred.
• 768: same form, page padding 24px. The menu stays 180px and may overlay the chips.
• <640: the form is width: calc(100% - 32px). The model row wraps. Send stays on the right of its row, 40px tall. The menu is at least 180px and must not leave the form: if Add source is near the right edge, align the menu to the form’s left padding.
• Do not turn this into prompt-composer by adding tone chips. A product that needs a tone and a source uses this box and puts the tone in the sentence, or asks for one control, not both rows.

Acceptance checklist

Always

• A source can be attached before there is text, and Send stays disabled until there is text.
• Add source lists only names that are not already chips.
• Removing a chip returns that name to the list.
• The model is one button with two labels, not a second form.
• Submit prints the model, the sources, and the trimmed count. It does not write an answer.
• The field maxlength is 240.
• The menu does not push the Send row down.

This demo

• Style sheet is attached on the first frame.
• The list starts as House rules and Night book.
• Model labels are Quill and Quill small.
• Placeholder is “Which line should lead the Thursday note?”.
• An empty source list prints the words “no source” between the dots.

Implementation notes

Build the spare names from the menu, so the list and the script cannot drift:

const pool = [...menu.querySelectorAll('[data-name]')].map((b) => b.dataset.name);

On choose, splice that name out of pool, remove the option, and insert a chip before Add source. On remove, push the name back and append a new option. Hide Add source when pool is empty.

The status line is one template:

const via = names.length ? names.join(', ') : 'no source';
out.textContent = 'Asked ' + model.textContent + ' · ' + via + ' · ' + q.value.trim().length + ' characters';

Clear out on input, on model click, on add, and on remove.

Common mistakes:

• Reusing prompt-composer and adding the model as a fourth tone. Tone and model are different jobs.
• Letting Send invent a paragraph. This piece ends at the ask.
• A native file input. The sources are named documents already on the desk.
• Leaving the menu open after a choice, or leaving Add source visible when nothing remains.
