Invoice builder with live PDF

Build brief for a coding agent. Rebuild this piece in the reader’s stack. If they haven’t said which stack, ask once, then default to semantic HTML + CSS + a little vanilla JS. Match the numbers below; don’t “improve” them.

What it is

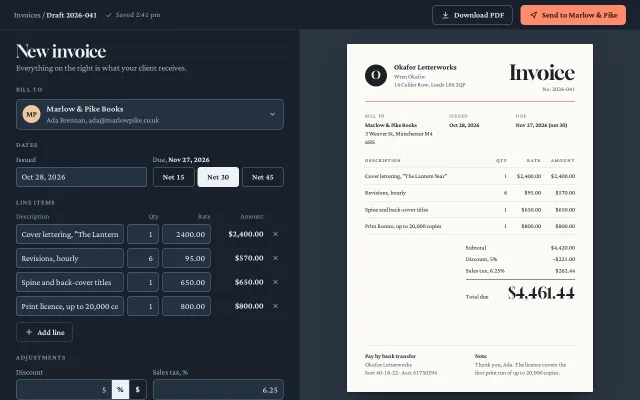

The draft screen of an invoicing tool for a freelance letterer, Wren Okafor of Okafor Letterworks. A 600px form on deep ink-slate sits on the left; on the right a darker slate “desk” holds the invoice as it will arrive, an A4 sheet of warm paper set in Gloock and Crimson Pro, updating on every keystroke. The pairing is the point: the tool is dark and quiet so the paper is the brightest object on screen, and the paper’s type is a real invoice’s type, not UI. Sending stamps the sheet with a rotated vermilion “Sent” mark, so the confirmation lives on the document itself.

Reference behaviour

1. Initial state: draft 2026-041, “Saved 2:41 pm”. Client Marlow & Pike Books (Ada Brennan). Issued Oct 28, 2026; Net 30 pressed; due reads Nov 27, 2026. Four lines: Cover lettering, “The Lantern Year” 1 × 2,400.00; Revisions, hourly 6 × 95.00; Spine and back-cover titles 1 × 650.00; Print licence, up to 20,000 copies 1 × 800.00. Discount 5 %, sales tax 6.25 %. Preview: Subtotal $4,420.00, Discount, 5% −$221.00, Sales tax, 6.25% $262.44, Total due $4,461.44.
2. Typing in any description, quantity or rate updates that line’s amount in the form and the whole preview at once. When the total changes, the preview total flashes a pale coral background (#FFE1D6 fading out over 700ms) and a polite live region announces “Total due $…”.
3. “Add line” appends an empty row (fades in 6px from above, 280ms) and focuses its description. Each row’s × removes it; empty lines (no description and no rate) are left off the preview.
4. Net 15 / 30 / 45 is a three-button pressed group; it rewrites the due date (Nov 12 / Nov 27 / Dec 12, 2026) in the label and the preview (“Nov 27, 2026 (net 30)”).
5. Discount has a % / $ segmented switch. Percent shows “Discount, 5%” on the preview; dollars shows “Discount”. A discount never exceeds the subtotal.
6. The client picker is a button showing initials disc, company and contact. Clicking opens a listbox (fade and 4px drop, 160ms) of four clients; Up/Down move, Enter/Space choose, Escape closes, a click outside closes. Choosing a client updates the preview’s Bill to block and the send button label (“Send to Fieldhouse”).
7. “Send to Marlow & Pike” (the only filled button): the button turns into a muted coral-on-dark “Sent, Oct 28 at 2:41 pm” and the stamp lands on the sheet, scale(1.6) → 1 at −9° over 420ms. Any later edit to totals or client clears the sent state and the stamp lifts off.
8. The note textarea mirrors into the preview’s Note column.

Structure

1280 × 800
┌──────────────────────────────────────────────────────────────────────────────┐
│ Invoices / Draft 2026-041   ✓ Saved 2:41 pm        [Download PDF] [Send to …] │ 60
├──────────────── form 600 ────────────────┬──────────── desk 1fr ─────────────┤
│ New invoice (Gloock 34)                   │                                   │
│ BILL TO   [MP  Marlow & Pike Books   ⌄]   │   ┌──── A4 sheet 492 × 696 ────┐   │
│ DATES     [Oct 28, 2026] [N15][N30][N45]  │   │ (O) Okafor Letterworks  Invoice│ │
│ LINE ITEMS                                │   │ ───────────── coral rule ──── │ │
│ Description      Qty   Rate    Amount  ×  │   │ BILL TO  ISSUED  DUE           │ │
│ [............]  [ 1] [2400.00] $2,400  ×  │   │ table: desc qty rate amount    │ │
│ … 4 rows, gap 8                           │   │            Subtotal  $4,420.00 │ │
│ [+ Add line] (dashed)                     │   │            Total due $4,461.44 │ │
│ ADJUSTMENTS [5][%][$]   [6.25]            │   │ ── Pay by bank transfer · Note │ │
│ NOTE TO CLIENT [textarea 64]              │   └────────────────────────────────┘ │
│ (scrolls)                                 │   padding 28, sheet centred           │
└───────────────────────────────────────────┴───────────────────────────────────┘
item grid: minmax(0,1fr) 62 96 98 32, gap 8

• <header class="top">: breadcrumb, saved status, spacer, outline button, primary button with an inner <span> for its label.
• <form class="form"> scrolls on its own; each block is a <fieldset> with a <legend> in tracked caps.
• Client: <button aria-haspopup="listbox" aria-expanded aria-controls> plus <ul role="listbox"> of <li role="option" aria-selected tabindex="-1">.
• Terms: role="group" of three aria-pressed buttons. Discount: input plus two aria-pressed unit buttons.
• Items: .item rows of three inputs, an <output> and a remove button; every input has an aria-label with its line number.
• Desk: <section aria-label="PDF preview"> holding <article class="sheet"> (container-type: inline-size, aspect-ratio: 1/1.414) and an inner .pg whose sizes are all in cqw, so the page scales as one object.

Tokens

:root {
  /* tool chrome: ink slate */
  --ink-bg: #18202B;     /* form, top bar */
  --panel: #1F2935;      /* listbox */
  --field: #243040;      /* inputs, hover */
  --line: #2F3B4A;       /* hairlines */
  --edge: #6B7A8C;       /* control borders, 3.6:1 on --ink-bg */
  --desk: #2B3542;       /* preview ground */
  --text: #EEF1F4;
  --text-2: #B4BECA;     /* labels (9.2:1) */
  --text-3: #94A0AE;     /* legends, meta (6.4:1) */

  /* one accent */
  --accent: #FF8A6B;     /* send, focus, selected option bar */
  --accent-ink: #1E120D; /* text on accent (8.8:1) */
  --accent-dim: #3A2A27; /* sent button */

  /* paper */
  --paper: #FBFAF6;
  --p-ink: #1D2026;
  --p-ink-2: #555B66;    /* 6.8:1 on paper */
  --p-rule: #E3E0D8;
  --p-accent: #C2462B;   /* header rule, stamp */
  --flash: #FFE1D6;

  /* type */
  --display: "Gloock", Georgia, serif;
  --serif: "Crimson Pro", Georgia, serif;

  /* shape */
  --r: 8px; --r-sm: 6px; --h-ctl: 40px;
  --form-w: 600px;
  --sheet-w: 492px;      /* A4 at 1 : 1.414 */
  --sheet-shadow: 0 1px 2px rgba(0,0,0,.3), 0 24px 50px -20px rgba(0,0,0,.6);

  /* motion */
  --t-fast: 160ms; --t-mid: 280ms;
  --ease: cubic-bezier(.2, .7, .2, 1);
  --ease-out: cubic-bezier(.16, 1, .3, 1);
}

Typography

Crimson Pro carries every word of the tool and the invoice body; Gloock is display only (page title, “Invoice”, monogram, total due, stamp). Numerals are tabular-nums lining-nums everywhere.

Role	Family	Size	Weight	Line-height	Tracking	Case
Page title	Gloock	34px	400	1.1	−0.01em	sentence
Body, inputs	Crimson Pro	17px	400	1.35	0	sentence
Field label	Crimson Pro	15px	400	1.35	0	sentence
Legend	Crimson Pro	13px	600	1.35	+0.1em	UPPERCASE
Buttons	Crimson Pro	16px	600	1	0	sentence
Sheet “Invoice”	Gloock	8.4cqw (41px)	400	1	−0.01em	Title
Sheet body	Crimson Pro	2.44cqw (12px)	400	1.4	0	sentence
Sheet captions	Crimson Pro	2cqw (9.8px)	600	1.4	+0.12em	UPPERCASE
Sheet total due	Gloock	6.4cqw (31px)	400	1	0	numerals
Stamp	Gloock	6cqw + 1.9cqw caption	400 / 600	1	caption +0.1em	—

Motion

Element	Trigger	Property	From → To	Duration	Easing
New line row	Add line	opacity, translateY	0, −6px → 1, 0	280ms	--ease-out
Preview total	total changes	background	--flash → transparent	700ms	--ease-out
Listbox	open / close	opacity, translateY	0, −4px ↔ 1, 0	160ms	--ease
Picker chevron	open	rotate	0 → 180°	160ms	--ease
Stamp	send	transform, opacity	rotate(-9deg) scale(1.6), 0 → scale(1), 1	420ms / 200ms	--ease-out / --ease
Send button	press	scale	1 → .97	160ms	--ease
Inputs	focus	border, ring	--edge → --accent + 3px 22% ring	160ms	--ease

Reduced motion: no row entrance, no flash, transitions 1ms; the stamp simply appears.

States

• Input hover: border --text-3. Focus: border --accent, 0 0 0 3px rgba(255,138,107,.22), no outline.
• Pressed (terms, units): fill --text, text --ink-bg.
• Option selected: inset 2px 0 0 var(--accent) bar; hover/focus --field fill.
• Sent: button data-state="sent", fill --accent-dim, text --accent, label “Sent, Oct 28 at 2:41 pm”; sheet .sent shows the stamp. Editing totals or client returns to draft.
• Empty line: shown in the form, hidden from the preview until it has a description or a rate; a rate-only line prints “Untitled line”.
• Focus-visible: 2px --accent outline, 2px offset, on all buttons and options.

Accessibility

• Every input has a visible label or an aria-label that includes its line number (“Rate, line 2”).
• Picker follows the listbox pattern: focus moves to the selected option on open, arrows wrap, Escape returns focus to the button.
• Terms and units are toggle buttons with aria-pressed, grouped and labelled.
• A visually hidden aria-live="polite" paragraph announces total changes, removed lines and the sent confirmation (“Invoice 2026-041 sent to ada@marlowpike.co.uk”).
• The preview is a labelled region; its text is real text, so a screen reader can read the invoice.
• Controls are 40px tall; remove buttons 32px inside a 40px row.
• Contrast: tool text ≥ 6.4:1 on slate; paper text ≥ 6.8:1; control borders 3.6:1.

Responsive rules

• ≥ 1280: as specified; form and desk scroll independently.
• 1100–1279: the desk narrows; the sheet keeps 492px or shrinks to the desk width minus 56px.
• < 1100: one column; the form flows first, the preview follows; the page scrolls as one.
• < 640: top bar keeps only the send button; date and adjustment pairs stack; the item header hides and each line becomes a bordered card: description and × on row one, quantity and rate on row two, amount on row three. The sheet scales with cqw to 358px wide. Inside it, Bill to takes a full row above Issued and Due, and the totals block widens to 72%. Below 640 the sheet also drops its fixed A4 ratio and sets body text at a fixed 12px (captions 10px, meta values 13px) so nothing on the page shrinks under 10px; the payment footer flows after the totals instead of being pinned to the bottom. Nothing scrolls sideways at 390.

Acceptance checklist

Always

• Every keystroke in the form updates the preview with no submit.
• The preview is one scalable object (container units), A4 ratio 1 : 1.414.
• Line items can be added, edited and removed; amounts use tabular figures.
• Discount supports percent and fixed amounts and never exceeds the subtotal.
• Payment terms rewrite the due date in both places.
• Client picker is a keyboard-operable listbox.
• Exactly one filled button (send); sending stamps the page and any later edit returns to draft.
• The total change is announced through a polite live region.
• At 390 the item rows become cards and nothing scrolls sideways.

This demo

• Okafor Letterworks, invoice No. 2026-041, issued Oct 28, 2026, Net 30 due Nov 27, 2026.
• Four lines totalling $4,420.00, 5% discount −$221.00, 6.25% tax $262.44, total $4,461.44.
• Clients: Marlow & Pike Books, Fieldhouse Coffee Co., Saltmarsh Records, Thimble Theatre Trust.
• Stamp reads “Sent / OCT 28, 2:41 PM” at −9°.

Implementation notes

Scale the page with container units. Put container-type on the sheet and every size on a child, so the whole invoice scales with its width (a container cannot use its own cqw):

.sheet { container-type: inline-size; width: min(100%, 492px); aspect-ratio: 1 / 1.414; background: var(--paper); }
.pg { height: 100%; padding: 7.3cqw 7.3cqw 6cqw; font-size: 2.44cqw; line-height: 1.4; position: relative; }
.sheet h2 { font: 400 8.4cqw/1 var(--display); }
.tot .due b { font: 400 6.4cqw/1 var(--display); }

One calculation, run on every input. Keep line items in an array, parse loosely, round tax to cents once:

const sub = items.reduce((s, [, q, r]) => s + q * r, 0);
const disc = Math.min(sub, unit === '%' ? sub * dv / 100 : dv);
const tax = Math.round((sub - disc) * taxRate) / 100;
const total = sub - disc + tax;

Restart the flash on every change. Remove the class, force a reflow, add it back:

t.classList.remove('flash'); void t.offsetWidth; t.classList.add('flash');

Common mistakes: rendering the preview with UI type (it must look like the document); re-rendering the form rows on each keystroke (focus jumps; re-render only on add/remove); a <select> for the client that cannot show the contact line; leaving the sent state on after the amount changed.
