Glass dashboard home

Build brief for a coding agent. Rebuild this piece in the reader’s stack. If they haven’t said which stack, ask once, then default to semantic HTML + CSS + a little vanilla JS. Match the numbers below; don’t “improve” them. This is glassmorphism done as a system: one scene layer, frosted panels, a solid fallback, and contrast measured on the blurred ground. Do not add a second gradient or a blob.

What it is

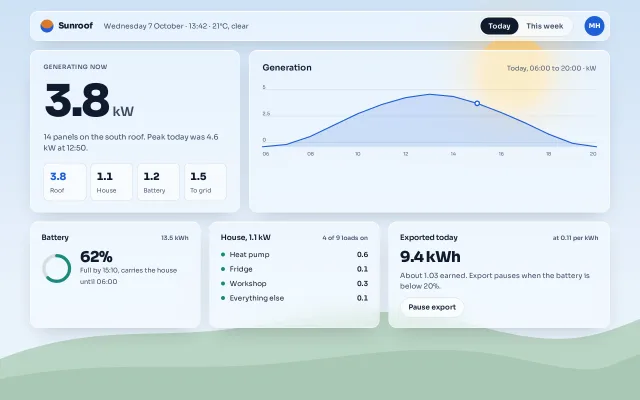

The home screen of Sunroof, a fictional rooftop-solar monitor. One fixed scene sits behind everything: a pale sky gradient, a sun disc with a soft glow, and two drawn hills along the bottom. Every piece of interface is a frosted panel: frost-white at 64% opacity, a 20px blur with 140% saturation, a 1px line at 72% white, a 16px radius, and a one-pixel inner highlight along the top. The answer is the biggest thing on the screen: 88px “3.8 kW” generating now, with a four-cell strip showing where it goes (roof, house, battery, grid). Beside it an SVG area chart draws the day’s curve with a dot on the current hour; below, three cards: a battery ring at 62%, the house’s four live loads, and today’s export with a pause button. A Today / This week segmented control redraws the chart and the number. The detail worth copying is the contrast discipline: the muted ink is #4a5870, not a lighter grey, because it is measured against the glass blended with the darkest hill under it, where it still passes 4.5:1.

Reference behaviour

1. First frame: the scene, then the bar and five panels fade up 12px in sequence (0, 60, 120, 180, 240, 300ms). Bar: Sunroof mark, “Tuesday 7 October · 13:42 · 21°C, clear”, segmented Today (pressed) / This week, an account circle “MH”. Now panel: “GENERATING NOW”, 3.8 kW, one sentence, the four-cell flow strip with Roof highlighted in cobalt. Chart: “Generation”, “Today, 06:00 to 20:00 · kW”, a curve from 0 at 06 to a 4.6 peak near 13, the dot at 14:00, x labels 06 to 20, y labels 5 / 2.5 / 0. Cards: Battery 62% ring, House 1.1 kW with four loads, Exported today 9.4 kWh with “Pause export”.
2. Click “This week”: the chart redraws as seven daily bars-worth of points (Wed to Tue), the y axis becomes 30 / 15 / 0, the big number becomes 25.6 kWh, the sentence changes. Click “Today”: back.
3. Click “Pause export”: the button fills ink and reads “Resume export”; the export sentence changes to “Export paused…”. Click again to resume.
4. Hover the pause button: its fill goes from 60% white to 90% white in 200ms. Pressed state hover: --ink-2.
5. The battery ring’s arc animates from empty to 62% over 600ms on load (reduced motion: it is drawn at 62% at once).
6. When backdrop-filter is not supported, every panel is frost-white at 94% with no blur. Nothing else changes.

Structure

1280 × 800   scene: fixed, sky gradient top → 70%, sun 150px at right 14% / top 9%, two hills in the bottom 34%
wrap max 1220, padding 22/30, grid rows gap 18
┌ bar 60 (glass) ─────────────────────────────────────────────────────────────────┐
│ ● Sunroof   Tuesday 7 October · 13:42 · 21°C, clear       (Today | This week) (MH) │
├ grid 420 | 1fr, gap 18 ──────────────────────────────────────────────────────────┤
│ ┌ now ──────────────────┐  ┌ chart ─────────────────────────────────────────────┐ │
│ │ GENERATING NOW        │  │ Generation            Today, 06:00 to 20:00 · kW   │ │
│ │ 3.8 kW   88/800       │  │ 5 ─────────────────────────────────────────────── │ │
│ │ one sentence          │  │ 2.5 ────────────╱──╲──────────────────────────── │ │
│ │ [3.8][1.1][1.2][1.5]  │  │ 0 ──────╱───────────────╲────────── area + line  │ │
│ │ Roof House Batt Grid  │  │ 06   08   10   12   14   16   18   20   (190 tall)│ │
│ └───────────────────────┘  └────────────────────────────────────────────────────┘ │
├ row 1fr | 1fr | 1.3fr, gap 18 ──────────────────────────────────────────────────┤
│ ┌ Battery  13.5 kWh ─┐ ┌ House, 1.1 kW  4 of 9 on ─┐ ┌ Exported today  at 0.11 ─┐ │
│ │ (ring 76) 62%      │ │ ● Heat pump          0.6  │ │ 9.4 kWh  30/800           │ │
│ │ Full by 15:10…     │ │ ● Fridge             0.1  │ │ About 1.03 earned…        │ │
│ └────────────────────┘ │ ● Workshop           0.3  │ │ [Pause export] 40 pill    │ │
│                        └───────────────────────────┘ └───────────────────────────┘ │
└──────────────────────────────────────────────────────────────────────────────────┘

• div.scene[aria-hidden] (fixed, z 0) → span.sun, an SVG with two hill paths.
• main.wrap (z 1) → header.panel.bar, div.grid (section.panel.now, section.panel.chart), div.row3 (three section.panel.card).
• Every section is labelled by its own heading (aria-labelledby). The chart SVG is role="img" with a sentence label.

Tokens

:root {
  /* scene */
  --sky-1: #cfe2f6;  --sky-2: #e9f2fb;  --sun: #ffd58a;  --hill: #b9d4c3;  --hill-2: #a9c8b4;
  /* ink, chosen against the blurred ground */
  --ink: #0f1b2d;  --ink-2: #3b4a62;  --ink-3: #4a5870;
  --line: rgba(255,255,255,.72);        /* panel edge */
  --line-ink: rgba(15,27,45,.12);       /* grid lines, inner cells */
  /* glass */
  --glass: rgba(247,250,253,.64);       /* --surface at 64% */
  --glass-solid: rgba(247,250,253,.94); /* the fallback */
  --blur: 20px;
  /* roles */
  --primary: #1f5fd6;  --primary-ink: #ffffff;  --primary-soft: rgba(31,95,214,.14);
  --secondary: #1a8a7a;  --tertiary: #d9792a;

  --sans: "Sora", system-ui, sans-serif;
  --r: 16px;  --r-sm: 10px;
  --shadow: 0 16px 40px -20px rgba(15,27,45,.28);
  --t-micro: 200ms;  --t-in: 600ms;
  --ease: cubic-bezier(.2,.7,.2,1);  --expo: cubic-bezier(.16,1,.3,1);
}

Typography

Role	Family	Size	Weight	Line-height	Tracking	Case
The number	Sora	88px	800	0.95	−0.045em	tabular numerals; unit 26px/600
Card figure	Sora	30px	800	1	−0.03em	numerals
Flow cell figure	Sora	20px	800	1	−0.03em	numerals
Wordmark	Sora	17px	800	1	−0.02em	sentence
Panel heading	Sora	15–17px	600	1.3	−0.01em	sentence
Body, list row	Sora	14–15px	400	1.5	0	sentence
Segment, button	Sora	14px	600	1	0	sentence
Label	Sora	12px	600	1	+0.06em	UPPERCASE, --ink-3
Axis	Sora	11px	400	1	0	numerals, --ink-3

Motion

Element	Trigger	Property	From → To	Duration	Easing
.panel.in	load	opacity, transform	0, 12px → 1, 0; delays 0 / 60 / 120 / 180 / 240 / 300ms	600ms	--expo
.ring .val	load	stroke-dashoffset	201 → 76 (62% of a 201 circumference)	600ms	--expo
.seg button	press	background, color	transparent → --ink, --ink-2 → white	200ms	--ease
.btn	hover / press	background, color	60% white → 90% white; pressed → --ink	200ms	--ease
chart paths	range change	d attribute	redrawn at once (no tween)	0	–

Reduced motion: no entry animation, no ring sweep, 1ms transitions. The glass itself never moves; blur stays on elements that do not animate their position.

States

• Panel: frosted (64% + 20px blur). No backdrop-filter: 94% solid, same border and shadow.
• Segment: pressed = ink fill, white text; unpressed = --ink-2 text on 50% white.
• Flow cell: .on figure in --primary; the rest --ink.
• Pause button: default 60% white pill with an ink hairline; hover 90% white; pressed (aria-pressed) ink fill, white text, “Resume export”; pressed hover --ink-2.
• Battery ring: teal arc on a 12% ink track; the percentage and the sentence are real text.
• List row: teal dot when the load is on, --ink-3 dot when off.

Accessibility

• Contrast on the blurred ground: blend --glass (64%) with the darkest hill #a9c8b4 → about #dbe7df. On that: --ink 13.4:1, --ink-2 7.3:1, --ink-3 5.6:1, --primary 4.9:1, the teal ring 3.4:1 (non-text). On the sky the numbers are higher. Keep --ink-3 at least this dark; do not lighten it to “look softer”.
• The segmented control and the pause button use aria-pressed; the account button has an aria-label. The chart SVG has a sentence label; the data is also in the number and the sentence beside it, so the chart is not the only source.
• Every panel is a <section> labelled by its heading. The scene is aria-hidden and pointer-events: none.
• Focus ring: 2px --primary at 3px offset on every control, visible over glass.
• Hit targets: segments 34px tall in a 40px pill, account 40px, pause 40px.

Responsive rules

• ≥ 1280: grid 420 | 1fr; three cards 1fr 1fr 1.3fr; the number 88px.
• 1024–1279: grid 360 | 1fr; the number 72px; chart 170px tall.
• 768–1023: one column; the now panel first, then the chart, then the three cards in a row of three at 1fr each; the bar’s date shortens to “Tue 7 Oct · 13:42”.
• < 640: padding 16px; the number 64px; the flow strip 2×2; cards stack; the bar keeps the segmented control and drops the date to a second line. Blur stays; panels stay 64% (do not raise opacity on phones unless the scene is a photo with dark areas).

Acceptance checklist

Always

• Exactly one scene layer, fixed, behind every panel. No blob, no second gradient on a panel, no glass panel sitting on another glass panel.
• Every panel is --surface at 60 to 75% with backdrop-filter: blur(16 to 24px), a 1px light line, the family radius, and a solid 90%+ fallback under @supports not (backdrop-filter: blur(1px)).
• One number at display size (the answer); every other figure steps down to 30px or less.
• The chart is inline SVG from an array; switching the range redraws paths, axes, the big number and the sentence.
• Body text passes 4.5:1 and lines and icons 3:1 measured against the panel blended with the darkest scene colour under it; the brief’s --ink-3 or darker.
• Segments and the pause button are aria-pressed buttons; each section has a heading it is labelled by.
• Reduced motion: no entry animation, no ring sweep.
• The scene and the blur stay still; nothing with blur animates its position.

This demo

• Sunroof, 3.8 kW now, peak 4.6 at 12:50, flow 3.8 / 1.1 / 1.2 / 1.5, battery 62% of 13.5 kWh, four loads summing to 1.1, export 9.4 kWh; the week view shows 25.6 kWh and 147.6 kWh.

Implementation notes

The panel, with its fallback:

.panel { background: var(--glass); -webkit-backdrop-filter: blur(var(--blur)) saturate(140%); backdrop-filter: blur(var(--blur)) saturate(140%);
  border: 1px solid var(--line); border-radius: var(--r); box-shadow: var(--shadow), inset 0 1px 0 rgba(255,255,255,.9); }
@supports not (backdrop-filter: blur(1px)) { .panel { background: var(--glass-solid); } }

Measure contrast on the blend, once, in code review:

const blend = (fg, a, bg) => fg.map((c, i) => Math.round(c * a + bg[i] * (1 - a)));
// glass over the darkest hill: blend([247,250,253], .64, [169,200,180]) → [219,232,227]
// then check each ink against that with any WCAG contrast function

The chart from an array, so the range switch is one function:

const xy = pts.map((v, i) => [i * (W / (pts.length - 1)), TOP + H - (v / max) * H]);
const d = xy.map((p, i) => (i ? 'L' : 'M') + p[0] + ' ' + p[1]).join(' ');
line.setAttribute('d', d);  area.setAttribute('d', d + ` L${W} ${TOP + H} L0 ${TOP + H}Z`);

Common mistakes: a lighter grey for captions that passes on white but not on the blend; blur on a panel that slides in (it stutters); a gradient on the panel as well as the scene; forgetting -webkit-backdrop-filter; raising the panel opacity to 90% everywhere, which is no longer glass, instead of fixing the ink.
