Sunset grid hero

Build brief for a coding agent. Rebuild this piece in the reader’s stack. If they haven’t said which stack, ask once, then default to semantic HTML + CSS + a little vanilla JS. Match the numbers below; don’t “improve” them. This is the one effect piece for a synthwave, outrun, retrowave or vaporwave look. The gradient, the glow and the neon are the scene; the interface on top stays flat and readable.

What it is

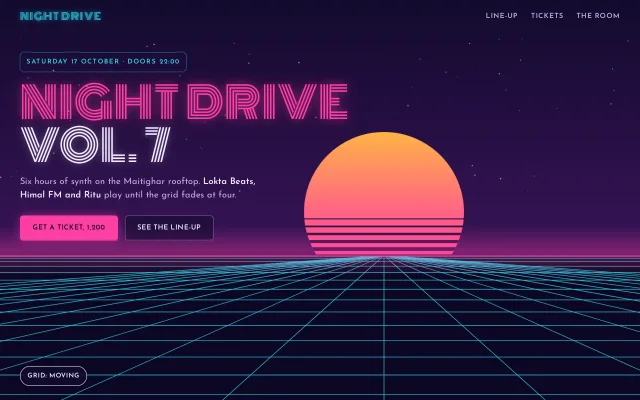

The first screen of Night Drive, a fictional rooftop synth night. One canvas draws the whole scene: an indigo-to-plum sky with ninety slow-blinking stars, a sun that fades from amber through coral to magenta with six dark stripes cut across its lower half, a magenta horizon line with a soft glow, and a cyan grid on a near-black ground. The grid’s vertical lines converge on a vanishing point behind the sun; its horizontal lines roll toward the viewer, spaced by z² so they bunch at the horizon and spread at the bottom, looping every 2.9 seconds. On top: a nav with a cyan tube-letter wordmark, a kicker in a cyan hairline box, a two-line Monoton headline in magenta with a neon glow, one lede and two buttons. The detail worth copying is the budget: the canvas runs at most 45 frames a second at a device pixel ratio capped at 1.5, stops when it leaves the viewport or the tab hides, and under reduced motion (or the “Grid: still” button) draws one frame and stops, so the page stays cheap on a slow phone.

Reference behaviour

1. First frame: the scene already drawn, the grid rolling; the kicker, headline, lede and buttons fade up 14px in sequence (0 / 80 / 160 / 240ms) over 900ms. Copy: “Saturday 18 October · Doors 22:00”, “NIGHT DRIVE / VOL. 7”, the lede, buttons “Get a ticket, 1,200” (magenta) and “See the line-up” (ghost).
2. The horizontal grid lines move down and apart; a new line appears at the horizon every 2.9 seconds. Stars blink slowly (opacity 0.35 to 0.75 on a sine). Nothing else in the scene moves.
3. Hover the magenta button: it lifts 2px and its glow widens (22px to 34px blur). The ghost button’s border brightens.
4. “Grid: still” (bottom left, aria-pressed): stops the loop and leaves the last frame. “Grid: moving” starts it again.
5. When the canvas scrolls out of view, or the tab is hidden, the loop stops; it resumes when visible, unless still was chosen or reduced motion is on.
6. Resizing redraws at the new size; the sun is 20% of the shorter side.
7. Reduced motion: the entry animation is removed and the grid is drawn once; the button starts as “Grid: still”.

Structure

1280 × 800, one canvas behind everything (z 0), content at z 2
nav 22/40        NIGHT DRIVE (cyan tube)                      LINE-UP  TICKETS  THE ROOM
copy, padding 40/40, max 760
[ SATURDAY 18 OCTOBER · DOORS 22:00 ]  kicker, cyan hairline box
NIGHT DRIVE          86px Monoton, magenta, glow
VOL. 7               second line, ink
lede 18px/400, 46ch
[GET A TICKET, 1,200] [SEE THE LINE-UP]
                                                       (sun, 20% of min(W,H), centred at 60% W, 55% of its radius above the horizon at 64% H)
───────────────────────────────── horizon, magenta, glow ─────────────────────────────────
  \  \  \  |  /  /  /   cyan grid: 25 verticals to the vanishing point, 14 horizontals at z²
[GRID: MOVING]

• main.hero → canvas#c[aria-hidden], header.nav (a.brand, nav.links), div.copy (span.kicker, h1 with a span second line, p.lede, div.ctas with two a.btn), button.motion[aria-pressed].

Tokens

:root {
  --bg: #120b2e;  --surface: #1a1140;
  --ink: #f4ecff;  --ink-2: #c3b6e6;  --ink-3: #9a8cc4;  --line: #2f2466;
  --magenta: #ff3fa4;   /* primary: the headline, the button, the horizon */
  --cyan: #2fe2f0;      /* secondary: the wordmark, the kicker, the grid, focus */
  --sun: #ffb347;  --sun-2: #ff5c8a;   /* the sun's gradient stops, with --magenta at the bottom */
  --display: "Monoton", cursive;
  --sans: "Josefin Sans", system-ui, sans-serif;
  --r: 6px;
  --glow-m: 0 0 18px rgba(255,63,164,.55), 0 0 48px rgba(255,63,164,.3);   /* headline */
  --glow-btn: 0 0 22px rgba(255,63,164,.45);
  --t-micro: 200ms;  --t-in: 900ms;
  --ease: cubic-bezier(.2,.7,.2,1);  --expo: cubic-bezier(.16,1,.3,1);
}
/* scene constants, in the script */
/* horizon 0.64 H · vanishing point 0.60 W · sun radius 0.20 min(W,H), centre 0.55 r above the horizon · 25 verticals at 0.06 W · 14 horizontals · loop 2.86 s · fps cap 45 · DPR cap 1.5 */

Typography

Role	Family	Size	Weight	Line-height	Tracking	Case
Headline	Monoton	clamp(52px, 6.8vw, 86px)	400	1	+0.02em	UPPERCASE, line 1 magenta with glow, line 2 ink
Wordmark	Monoton	20px	400	1	+0.06em	UPPERCASE, cyan with glow
Lede	Josefin Sans	18px	400	1.5	0	sentence, --ink-2; names in 600 --ink
Button	Josefin Sans	14px	600	1	+0.04em	UPPERCASE
Nav link	Josefin Sans	14px	600	1	+0.08em	UPPERCASE, --ink-2
Kicker	Josefin Sans	13px	600	1	+0.14em	UPPERCASE, cyan
Motion button	Josefin Sans	13px	600	1	+0.06em	UPPERCASE

Motion

Element	Trigger	Property	From → To	Duration	Easing
horizontal grid lines	loop	y position	horizon → bottom, spaced by ((i + phase) / 14)²	2.86s per line	linear
stars	loop	alpha	0.35 ↔ 0.75	~4s sine	–
.in	load	opacity, transform	0, 14px → 1, 0	900ms, delays 0 / 80 / 160 / 240	--expo
.btn	hover	transform, box-shadow	0, 22px glow → −2px, 34px glow	200ms	--ease

Budget: requestAnimationFrame throttled to 45fps; canvas at min(devicePixelRatio, 1.5); an IntersectionObserver and visibilitychange stop the loop when unseen. Reduced motion: no entry animation; one frame, then stopped; the Grid button reads “still”.

States

• Grid moving / still: aria-pressed on the bottom-right button; the label says which.
• Button default / hover / focus-visible: magenta fill with a 22px glow; lifted with a 34px glow; 2px cyan outline at 4px offset.
• Ghost button: 55% indigo with an 8px blur and a 40% ink border; hover brightens the border.
• Offscreen or hidden tab: the loop is stopped; the last frame stays.

Accessibility

• The canvas is aria-hidden; everything it says is in the copy. The headline, kicker and buttons are real text.
• Contrast is measured on the actual ground: the copy sits over the sky gradient (#120b2e to #3a1458). --ink on #3a1458 12.9:1; --ink-2 7.9:1; the magenta headline is 86px and passes the large-text rule at 5.8:1 on the darkest sky and 4.6:1 on the lightest, so the glow is decoration and the fill does the work; cyan kicker on the sky 9.3:1 or better; #1a0a20 on the magenta button 5.9:1. Keep the copy block over the sky, never over the sun.
• The Grid button is a real control for people who prefer less motion but did not set the OS flag; it also follows the media query live.
• Focus rings are cyan, 2px at 4px offset, visible on the dark ground.
• Hit targets: buttons 50px, the Grid button 40px, nav links 14px type with 26px gaps (make them 44px tall on touch).

Responsive rules

• ≥ 1280: as drawn; headline 86px; the copy ends above the horizon.
• 1024–1279: headline 6.8vw; the sun stays at 60% W.
• 768–1023: copy max 600px; horizon 0.68 H; the vanishing point moves to 50% W so the sun sits behind the copy’s right edge.
• < 640: padding 20px; headline 56px; buttons full width stacked; 15 verticals instead of 25; the canvas DPR cap stays 1.5 and the fps cap drops to 30. The Grid button stays reachable above the fold’s bottom edge.

Acceptance checklist

Always

• One canvas draws sky, stars, a striped sun, a glowing horizon and a cyan perspective grid; nothing in the scene is a DOM element.
• Horizontal lines are spaced by z² from the horizon and loop every 2.86s; vertical lines converge on one vanishing point.
• The loop runs at most 45fps, at a DPR of at most 1.5, and stops when the canvas is off-screen or the tab is hidden.
• Reduced motion, or the Grid button, leaves a single still frame; the button’s aria-pressed and label match the state.
• The headline is the display face in --primary with a glow; the second line is --ink; body and buttons are the text face, flat.
• The copy sits over the sky and passes 4.5:1 (body) and 3:1 (the 86px headline) on the darkest and lightest sky stops.
• Two buttons at most; one filled. No stats, no pill row, no scroll cue.
• Focus rings visible on every control.

This demo

• Night Drive Vol. 7, Saturday 18 October, doors 22:00, Maitighar rooftop, ticket 1,200; nav Line-up, Tickets, The room.

Implementation notes

The grid, spaced by z² so it reads as a floor:

const hz = H * .64, vx = W * .6;
for (let i = -12; i <= 12; i++) { const x0 = vx + i * W * .06; g.moveTo(vx + (x0 - vx) * .02, hz); g.lineTo(vx + (x0 - vx) * 4.2, H); }
const ph = (t * .00035) % 1;                       // 2.86 s loop
for (let i = 0; i < 14; i++) { const z = (i + ph) / 14; const y = hz + (H - hz) * z * z; g.moveTo(0, y); g.lineTo(W, y); }

The sun is a clipped gradient with stripes painted over it in the ground colour:

g.save(); g.beginPath(); g.arc(sx, sy, sr, 0, Math.PI * 2); g.clip();
g.fillStyle = sunGradient; g.fillRect(sx - sr, sy - sr, sr * 2, sr * 2);
g.fillStyle = '#2a0f45';
for (let i = 0; i < 6; i++) g.fillRect(sx - sr, sy + sr * (.08 + i * .09), sr * 2, 2 + i * 1.4);
g.restore();

The budget, in one place:

dpr = Math.min(devicePixelRatio || 1, 1.5);
function frame(now) { if (now - last < 1000 / 45) return (raf = requestAnimationFrame(frame)); t += now - last; last = now; draw(t); raf = requestAnimationFrame(frame); }
function update() { cancelAnimationFrame(raf); if (want && seen && !document.hidden) raf = requestAnimationFrame(frame); }
new IntersectionObserver(([e]) => { seen = e.isIntersecting; update(); }).observe(canvas);
document.addEventListener('visibilitychange', update);

Common mistakes: shadowBlur on the grid lines (it costs more than everything else combined; use a gradient band for the horizon glow instead); an uncapped DPR on a 3× phone; a loop that keeps running under a modal or in a background tab; putting the copy over the sun, where magenta text fails; a second effect (a scanline overlay, a glitch) on the same hero.
