Giant numeral steps

Build brief for a coding agent. Rebuild this piece in the reader’s stack. If they haven’t said which stack, ask once, then default to semantic HTML + CSS + a little vanilla JS. Match the numbers below; don’t “improve” them.

What it is

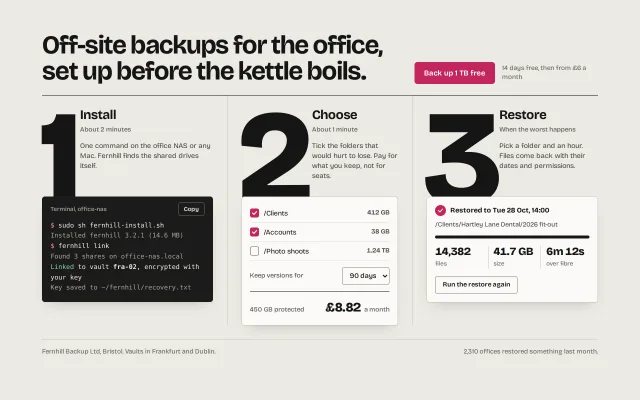

The “how it works” section for “Fernhill”, an invented off-site backup service for small offices. Three columns hang from a 1px ink rule. Each starts with a numeral set at about 250px in Bricolage Grotesque 800, tight enough that it reads as a shape, with the step’s verb (Install, Choose, Restore) and a time beside it. A working artefact card slides 30px up over the foot of each numeral: a terminal transcript with a Copy button, a folder picker whose price updates as you tick, and a restore result you can run again. The detail to copy: the overlap. The number sits behind the proof, so the section reads as one composition, not three tiles.

Reference behaviour

1. Initial state: headline (two lines at 52px) left, raspberry “Back up 1 TB free” and a price note right; a 1px --ink rule; three columns split by 1px --line verticals.
2. Hover or focus anything inside a column: its numeral turns from ink to raspberry over 240ms.
3. Install: Copy writes sudo sh fernhill-install.sh to the clipboard (guarded; failures are silent), and the button reads “Copied” for 1600ms.
4. Choose: three folder checkboxes (/Clients 412 GB on, /Accounts 38 GB on, /Photo shoots 1.24 TB off) and a “Keep versions for” select (30 days ×1, 90 days ×1.4, 1 year ×2.1). Price = GB × £0.014 × multiplier. Initial: “450 GB protected”, £8.82 a month. Ticking /Photo shoots gives “1.69 TB protected”, £33.12.
5. Restore: a done state “Restored to Tue 28 Oct, 14:00”, path, a full 6px meter, and three stats (14,382 files, 41.7 GB, 6m 12s). “Run the restore again” refills the meter from 0 over 2400ms (expo-out), the status reads “Restoring 14,382 files” and the button is disabled until it finishes.
6. Footer hairline with company and proof line.

Structure

1280 × 800
┌──────────────────────── wrap 1200 max, padding 64 / 44 / 48 ─────────────────────────┐
│ Off-site backups for the office,                       [Back up 1 TB free] 14 days…  │
│ set up before the kettle boils.  (52px, 700)                                          │
│━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1px ink ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━│
│ █  Install          │ ██  Choose            │ ███ Restore                              │
│ █  About 2 minutes  │  █  About 1 minute    │   █ When the worst happens               │
│ █  One command…     │ █   Tick the folders… │ ███ Pick a folder…                       │
│┌terminal──────────┐ │┌form───────────────┐  │┌result────────────────┐                 │
││ $ sudo sh …      │ ││ ☑ /Clients 412 GB │  ││ ✓ Restored to Tue…   │  ← card overlaps │
││ Linked to fra-02 │ ││ Keep versions [90]│  ││ meter · 3 stats      │    numeral by 30 │
│└──────────────────┘ ││ 450 GB    £8.82   │  │└──────────────────────┘                 │
│                     │└───────────────────┘  │                                          │
│ footer: Fernhill Backup Ltd, Bristol…                 2,310 offices restored…         │
└───────────────────────────────────────────────────────────────────────────────────────┘
 columns 1fr ×3 · inner padding 28 either side of each vertical rule

• <section aria-labelledby> → .head (<h2> + .cta), <ol> of three <li>, .foot.
• Each <li>: .top grid (auto 1fr, gap 18) holding <span class="n" aria-hidden="true"> and .lab (<h3> with a visually hidden “Step 1: ”, .t time, <p>). Then .art, the artefact.
• Artefacts: div.term (dark), form.form (checkbox labels, select, live total), div.res (status, path, meter, stats, ghost button).

Tokens

:root {
  /* colour: cool stone, ink, one raspberry */
  --bg: #ECEAE4;          /* page */
  --card: #FBFAF7;        /* form and result cards */
  --sunk: #E2DFD6;        /* row dividers, empty meter, ghost hover */
  --line: #CFCBC0;        /* column rules, card borders */
  --line-2: #8E897D;      /* select and ghost borders, 3:1 on --card */
  --ink: #151514;         /* headline, numerals, top rule, meter */
  --ink-2: #47453F;       /* body */
  --ink-3: #64615A;       /* time labels, units, footer */
  --accent: #C2255C;      /* primary, checkbox, done tick, numeral hover */
  --accent-hover: #A51D4D;
  --accent-ink: #FFFFFF;
  --term: #1B1B1A;  --term-ink: #E9E6DD;  --term-dim: #A7A296;
  --term-ok: #7FD3A0;  --term-prompt: #F08DB0;

  /* type */
  --font: "Bricolage Grotesque", system-ui, sans-serif;
  --mono: ui-monospace, "SF Mono", Menlo, monospace;   /* system mono, terminal only */
  --num: clamp(150px, 21vw, 280px);
  --fs-h2: clamp(32px, 4.2vw, 52px);
  --fs-verb: 26px;
  --fs-figure: 22–26px;
  --fs-body: 14px;
  --fs-meta: 12–13px;

  /* layout */
  --col-pad: 28px;
  --overlap: -30px;       /* artefact margin-top */
  --r: 6px;
  --shadow-card: 0 1px 0 rgba(21,21,20,.04), 0 12px 28px -16px rgba(21,21,20,.28);

  /* motion */
  --t: 160ms;
  --t-num: 240ms;
  --t-restore: 2400ms;
  --ease: cubic-bezier(.2, .7, .2, 1);
  --expo: cubic-bezier(.16, 1, .3, 1);
}

Typography

Role	Family	Size	Weight	Line-height	Tracking	Notes
Numeral	Bricolage Grotesque	clamp(150px, 21vw, 280px)	800	0.78	-0.07em	opsz 96, margin-left −6px to sit on the rule’s edge
Headline	Bricolage Grotesque	clamp(32px, 4.2vw, 52px)	700	1.0	-0.035em	max 24ch
Step verb	Bricolage Grotesque	26px	700	1.0	-0.02em	the label, never “Step 1”
Time	Bricolage Grotesque	13px	500	1.4	0	--ink-3
Step body	Bricolage Grotesque	14px	400	1.45	0	--ink-2
Price, stats	Bricolage Grotesque	26px / 22px	800	1.1	-0.03em	tabular numerals
Terminal	system mono	13px	500	1.6	0	wraps, never scrolls sideways
Meta	Bricolage Grotesque	12–13px	400–600	1.35	0

Motion

Element	Trigger	Property	From → To	Duration	Easing	Reduced motion
.n numeral	hover / focus-within on its column	color	--ink → --accent	240ms	--ease	1ms
.meter i	Run the restore again	transform scaleX	0 → 1	2400ms	--expo	no animation; status flips after 50ms
Copy label	click	text	Copy → Copied → Copy	1600ms hold	none	same

Nothing moves on load. The first frame is the finished composition.

States

• Primary: raspberry fill, white text, 44px; hover #A51D4D.
• Copy (on dark): 28px tall, 1px #6E6A61 border; hover #2A2A28; after click reads “Copied”.
• Checkbox: custom (appearance: none), 18px, 1.5px --ink-3 border (5.4:1 on --card), 4px radius; checked fills raspberry with a white tick. Unchecked rows keep their size so the total row never jumps.
• Select: 36px, 1px --line-2 border on --card.
• Restore running: status “Restoring 14,382 files”, meter refilling, button disabled.
• Focus-visible: 2px raspberry outline, 2px offset, on every control.
• Column hover/focus: numeral raspberry.

Accessibility

• The steps are an <ol>, so order is announced. The numerals are aria-hidden; each <h3> carries a visually hidden “Step 1: ” so the label is complete for screen readers while sighted users see only the verb.
• The form uses real <label> wrappers and a labelled <select>; the total line is aria-live="polite".
• The restore status is aria-live="polite".
• The terminal has aria-label="Install commands"; its text is real text, selectable.
• Contrast: --ink-2 on --bg 8.7:1; --ink-3 on --bg 5.4:1; --term-dim on --term 6.9:1; white on raspberry 5.6:1; --line-2 border on --card 3.3:1.
• Hit targets: primary 44px, select and ghost 36px, checkbox rows 34px tall.

Responsive rules

• ≥ 1280: three columns as drawn; numerals 250–280px.
• 1024–1279: same; numerals follow 21vw.
• < 1024: one column; each step separated by a 1px bottom rule and 32px padding; artefacts cap at 520px wide.
• < 760: wrap padding 32px 16px; head stacks with the button above the note; numerals hit the 150px floor. .lab keeps 34px bottom padding so, when the text is taller than the numeral, the 30px overlap only eats padding and never covers words. At 390 wide nothing scrolls sideways.

Acceptance checklist

Always

• Numerals are at least 200px on desktop, weight 800, line-height 0.78.
• Each step is labelled by its verb, never “Step 1”; numerals are aria-hidden.
• The artefact card overlaps the foot of its numeral by 30px and sits above it (z-index: 1).
• Overlap never covers the step’s text at any width.
• Columns hang from a 1px ink rule and are divided by 1px hairlines; no card backgrounds on the columns themselves.
• Numeral turns accent on column hover and on focus-within.
• Every artefact does something: copy, recompute, replay.
• Reduced motion: no meter animation, the result still completes.
• At 390 wide: one column, no sideways scroll, terminal text wraps.

This demo

• Verbs Install, Choose, Restore with times “About 2 minutes”, “About 1 minute”, “When the worst happens”.
• Price starts at 450 GB, £8.82 a month, and becomes £33.12 with /Photo shoots ticked.
• Restore stats read 14,382 files, 41.7 GB, 6m 12s.
• Headline “Off-site backups for the office, set up before the kettle boils.”

Implementation notes

The overlap, safe at every width. Pull the artefact up with a negative margin and reserve the same space under the text column, so the overlap lands on the numeral when it is taller and on padding when the text is taller.

.top { display: grid; grid-template-columns: auto 1fr; gap: 18px; align-items: start; }
.n   { font: 800 var(--num)/.78 var(--font); letter-spacing: -.07em;
       font-variation-settings: "opsz" 96; margin: 22px 0 0 -6px; }
.lab { padding: 26px 0 34px; }          /* 34 > 30 overlap */
.art { position: relative; z-index: 1; margin-top: -30px; }

Price from the form, one function.

function price() {
  let gb = 0;
  plan.querySelectorAll('input[type=checkbox]').forEach(c => { if (c.checked) gb += +c.dataset.gb; });
  const p = gb * 0.014 * +keep.value;
  gbEl.textContent = (gb >= 1000 ? (gb / 1000).toFixed(2) + ' TB' : gb + ' GB') + ' protected';
  priceEl.firstChild.nodeValue = '£' + p.toFixed(2);   // keeps the " a month" span
}
plan.addEventListener('change', price);

Replay a CSS animation. Remove the class, force a reflow, add it back.

res.classList.remove('run'); void res.offsetWidth; res.classList.add('run');

Common mistakes: setting the numerals in a light weight (they stop reading as shapes); putting “01 / 03” eyebrows on top of the numerals; letting the terminal scroll sideways on phones; drop shadows on the columns themselves (only the overlapping artefacts get the soft shadow, because they float over the numeral).
