Collage hero

A scrapbook hero on a kraft board: a torn-paper headline block held by tape, a handwritten note with an arrow, three taped photo pages that shift on hover, a round sticker and a ticket stub.

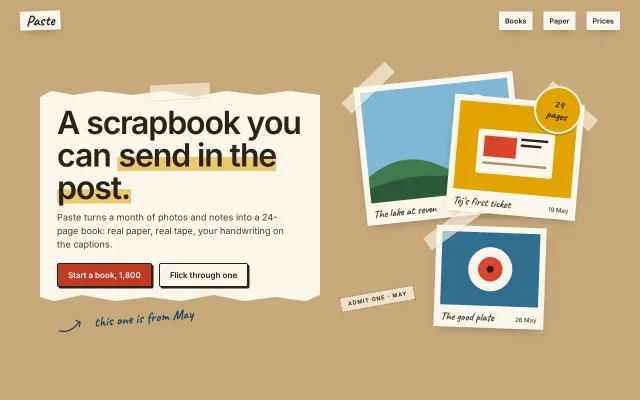

Preview

Open full size
1280 × 800 · 8.1 KB · 101 lines

Use it

Free to use · credit appreciated

1 Once, in your project · Node 22.20+

npx skills add SusanAcharya/Design-Lounge

2 Then ask

Using the Design Lounge skill, build "Collage hero" (piece collage-hero) in my stack. Match its brief; restyle it onto my product's theme.

No skill? Paste the brief instead. It carries the numbers, tokens and behaviour.

Brief

155 lines

Build brief for a coding agent. Rebuild this piece in the reader’s stack. If they haven’t said which stack, ask once, then default to semantic HTML + CSS + a little vanilla JS. Match the numbers below; don’t “improve” them. The hand face is for the notes only; the headline, body and buttons stay in the sans (the Handwritten Notes caution).

What it is

The first screen of Paste, a fictional service that prints a month of photos as a scrapbook. The page is a kraft board with a faint paper grain. Left: a white paper block with torn top and bottom edges (a clip-path polygon), held by a strip of translucent tape, carrying a 64px sans headline with one phrase on a yellow marker stripe, one sentence and two paper buttons with a 3px hard shadow. Under it, a blue handwritten note in Caveat with a drawn arrow: “this one is from May”. Right: three photo pages (320, 260 and 220px wide), each a white card with a drawn picture, a Caveat caption and a date, taped at a corner and rotated -6°, 5° and 2°, placed so no caption is covered; hovering the stage shifts each a few pixels and degrees, like pages lifting. A round yellow sticker reads “24 pages” and a dashed ticket stub says “Admit one · May”. The detail worth copying is the restraint: one hand face, used three times, and tape and tilt doing the rest; everything you read is set in the sans.

Reference behaviour

  1. First frame: nav with a tilted paper wordmark “Paste” and three paper links; the torn block with “A scrapbook you can send in the post.” (the last four words on the marker stripe), the sentence, buttons “Start a book, 1,800” (red) and “Flick through one” (paper); the note and arrow; the three pages, the sticker, the stub.
  2. Hover the stage: page 1 rotates to -8° and moves (−6, −4)px, page 2 to 7° and (6, −6), page 3 to 0° and up 8px, over 320ms expo-out. Leave: back.
  3. Hover a button: it moves (2, 2)px into its 3px shadow. Nav links darken to the second paper tone on hover.
  4. Nothing animates on load. Reduced motion: the pages do not move on hover.

Structure

1280 × 800, board #C9A97C with a 5px dot grain at 8%
nav 22/40   [Paste] (paper, -2°)                     [Books] [Paper] [Prices]  (paper tabs)
hero max 1200, padding 30/40, grid minmax(0,1fr) | 520px, gap 40, centred
┌ torn block, paper, padding 30/34 ───────────────┐   ┌ stage 520 × 560 ───────────────────────┐
│ ═══ tape ═══ (top centre, -3°)                   │   │  ┌ page 1, 320w, -6° ┐     (24 PAGES) ● │
│ A scrapbook you can                     64/600   │   │  │ picture 4:3       │ ┌ page 2, 260w, 5° ┐
│ [send in the post.]  ← marker stripe             │   │  │ caption   12 May  │ │ picture          │
│ one sentence 18px, 42ch                          │   │  └───────────────────┘ │ caption   19 May │
│ [Start a book, 1,800] [Flick through one]        │   │       ┌ page 3, 220w, 2° ┐─────────────────┘
└──────────────────────────────────────────────────┘   │ [ADMIT ONE · MAY]  │ picture          │     │
   ↗ this one is from May  (Caveat 28, blue, -5°)      │                    │ caption   26 May │     │
                                                        └────────────────────┴──────────────────┴─────┘
  • header.nav → a.brand, nav.links.
  • main.hero → a wrapper holding span.tape.top, section.torn[aria-labelledby] (h1 with mark, p, div.ctas), span.note[aria-hidden] with an SVG arrow; and div.stage[aria-label] → three figure.photo (span.tape, div.img[aria-hidden] with an inline SVG, figcaption with a small date), span.sticker[aria-hidden], span.ticket[aria-hidden].

Tokens

:root {
  --board: #c9a97c;    /* page */
  --paper: #fbf6ec;  --paper-2: #efe2c8;
  --ink: #2b2118;  --ink-2: #4a3a2a;  --ink-3: #5e4d3a;  --line: #b08f62;
  --red: #d9442b;      /* primary: the one filled button */
  --blue: #2f6f8f;     /* secondary: the pen, focus */
  --yellow: #e0a300;   /* tertiary: the marker stripe, the sticker */
  --tape: rgba(255,250,230,.6);
  --hand: "Caveat", cursive;
  --sans: "Inter", system-ui, sans-serif;
  --r: 4px;
  --shadow: 0 8px 20px -10px rgba(43,33,24,.45);
  --t-micro: 200ms;  --ease: cubic-bezier(.2,.7,.2,1);  --expo: cubic-bezier(.16,1,.3,1);
}
/* torn edge */
.torn { clip-path: polygon(0 3%,4% 0,12% 2%,21% 0,33% 2%,44% 0,55% 3%,66% 0,78% 2%,89% 0,100% 2%,100% 97%,95% 100%,84% 98%,73% 100%,62% 97%,50% 100%,39% 98%,27% 100%,15% 97%,5% 100%,0 98%); }

Typography

RoleFamilySizeWeightLine-heightTrackingCase
HeadlineInter64px6001.02−0.035emsentence; one phrase on the marker stripe
LedeInter18px4001.50sentence, --ink-2
ButtonInter16px60010sentence
Nav linkInter14px60010sentence, on paper tabs
WordmarkCaveat30px70010as written, on paper, −2°
NoteCaveat28px70010lower case, --blue, −5°
CaptionCaveat22px70010sentence, one line (white-space: nowrap), --ink-2; date 12px Inter 500 --ink-3
StickerCaveat22px70010centred, two lines
TicketInter11px6001+0.14emUPPERCASE, dashed border

Motion

ElementTriggerPropertyFrom → ToDurationEasing
.p1stage hovertransformrotate(-6deg) → rotate(-8deg) translate(-6px,-4px)320ms--expo
.p2stage hovertransformrotate(5deg) → rotate(7deg) translate(6px,-6px)320ms--expo
.p3stage hovertransformrotate(2deg) → rotate(0) translateY(-8px)320ms--expo
.btnhovertransform, box-shadow0, 3px 3px 0 → translate(2px,2px), 1px 1px 0200ms--ease

Reduced motion: transitions 1ms; the pages stay put on hover.

States

  • Button default: paper, 2px ink border, 3px ink shadow. Red: --red fill, cream text. Hover: pushed 2px. Focus-visible: 2px blue outline at 3px offset.
  • Nav link hover: --paper-2 fill.
  • Pages at rest / lifted: the rotations above; page 3 always on top.

Accessibility

  • The headline, sentence and buttons are real text in the sans; the note, sticker and ticket are aria-hidden decoration, and nothing they say is needed to use the page.
  • The stage is labelled “Three pages from a finished book”; each page is a figure with a real caption and date; the pictures are aria-hidden SVGs.
  • Contrast: --ink on paper 14.1:1; --ink-2 on paper 9.4:1; cream on the red button 4.9:1; --ink-3 date on paper 7.0:1; --blue note on the board 3.6:1 (decoration, 28px). The tape is 60% white and never sits over text.
  • Hit targets: buttons 48px, nav tabs 32px tall with 12px padding (make them 44px on touch).

Responsive rules

  • ≥ 1280: grid minmax(0,1fr) | 520px; headline 64px.
  • 1024–1279: right column 440px; pages 280 / 230 / 200 wide; headline 56px.
  • 768–1023: one column; the stage below the block at 420px tall; the note moves under the buttons.
  • < 640: padding 20px; headline 40px; buttons stacked full width; the stage shows pages 1 and 2 only (hide page 3 and the ticket); the sticker 72px. Keep the torn edge; it is the piece.

Acceptance checklist

Always

  • The headline block has torn top and bottom edges from a clip-path polygon and one tape strip; its text is the sans at display size, not the hand.
  • The hand face appears only on notes, captions, the wordmark and the sticker; body and buttons are the sans.
  • Three pages at three rotations, each taped at one corner, with a one-line caption and a date that no other page covers; hover shifts them by at most 8px and 2°.
  • One filled button and one paper button with a 3px hard shadow; hover pushes them.
  • One sticker and one ticket stub, both decorative and aria-hidden.
  • A faint dot grain on the board, under 10% opacity; no photo texture, no second gradient.
  • Focus rings visible on nav links and buttons.
  • Reduced motion: no hover shift.

This demo

  • Paste; “A scrapbook you can send in the post.”; buttons “Start a book, 1,800” and “Flick through one”; pages “The lake at seven” (12 May), “Tej’s first ticket” (19 May), “The good plate” (26 May); sticker “24 pages”; stub “Admit one · May”.
  • The note reads “this one is from May” with a drawn arrow pointing at the pages.

Implementation notes

The torn edge is one polygon on the block; keep the points under 3% so it reads as paper, not a saw:

.torn { clip-path: polygon(0 3%, 4% 0, 12% 2%, 21% 0, 33% 2%, 44% 0, 55% 3%, 66% 0, 78% 2%, 89% 0, 100% 2%,
  100% 97%, 95% 100%, 84% 98%, 73% 100%, 62% 97%, 50% 100%, 39% 98%, 27% 100%, 15% 97%, 5% 100%, 0 98%); }

Note that clip-path clips the shadow too, so the block’s shadow goes on a wrapper or is accepted as cut; the tape sits on the wrapper, outside the clip.

Tape is a translucent strip with a 1px shadow; rotate it from its centre:

.tape { position: absolute; width: 120px; height: 30px; background: rgba(255,250,230,.6); box-shadow: 0 1px 2px rgba(43,33,24,.15); }
.tape.tl { left: -30px; top: -12px; transform: rotate(-38deg); }

Pages lift together on the stage’s hover, each to its own end state:

.photo { transition: transform 320ms var(--expo); }
.stage:hover .p1 { transform: rotate(-8deg) translate(-6px,-4px); }
.stage:hover .p3 { transform: rotate(0) translateY(-8px); }

Placing the pages. Lay the three cards so each caption strip stays clear: the first high and left, the second high and right, the third low and between them, overlapping only the pictures above it. Check the overlap at every breakpoint; a caption hidden by a corner is the most common defect in this piece.

Variants. A product with real photos puts them in .img at 4:3 with object-fit: cover and keeps the paper margin; a one-page version keeps page 2 only, straight, with the sticker. The torn block can hold a form instead of buttons (one field and one button) without changing the edge.

Common mistakes: setting the headline in the hand face (it becomes a greeting card); more than one note; a photo texture on the board; tape over the caption; a drop shadow on the tape (it is flat).

Details

Palette
Type
Caveat · Inter
Motion
Subtle motion
Build
One session
Designed bySusan AcharyaKathmandu
